Setting up a Shibboleth-enabled Sympa server

Sympa is an open source mailing list software, provided by the CRU.

Shibboleth is an open source distributed authentication software, provided by Internet2 consortium; it implements the SAML 2.0 protocol.

Implementation in Sympa

Sympa has been made Shibboleth-enabled in its 4.1 release (March 2004). The implementation is wider that Shibboleth authentication and can be used to plug Sympa web interface with almost any authentication mecanism that comes with an Apache authentication module. The feature is named "generic SSO" in Sympa documentation.

Prerequisites

Sympa

You'll need to have a Sympa server running. It should be a recent version (5.3 or later) because a few bugs have been fixed.

Shibboleth Service Provider

You need to install Shibboleth SP (Service Provider) and configure it properly to interract with your favourite federation. The documentation refers to Shibboleth SP 2.4.

How it works

Sympa expects Shibboleth to provide some user informations, especially the user email address, once the user has authenticated. Sympa will get user attributes from Shibboleth Apache module via environment variables. You'll have to tell Sympa the names of these environment variables.

To keep part of Sympa web interface accessible to unauthenticated users, not all Sympa URLs are Shibboleth-protected. Only one URL needs to be protected ; Sympa will manage to collect user attributes when the user is redirected to this URL and will keep them in cache for later use, during the session.

Note that Sympa does not use lazy sessions mecanism (provided by Shibboleth); the mecanism used almost provides the same level of flexibility and can be adapted to authentication mecanisms other than Shibboleth.

Configuring Sympa

Sympa gathers all web authentication configuration in a single file: $SYSCONFDIR/auth.conf or $SYSCONFDIR/mail domain/auth.conf. You should create/edit this configuration file to add the Shibboleth-related paragraph. Here is a sample auth.conf file:

generic_sso
    service_name        Global Login
    service_id          our_service
    http_header_list    mail
    email_http_header   mail
    logout_url          https://web.example.org/Shibboleth.sso/Logout?return=https%3A%2F%2Fweb.example.org/sympa

#user_table
#    negative_regexp     .*

Note that:

You'll need to restart your Apache server to make Sympa web server take these changes into account, such as doing:

# service httpd restart

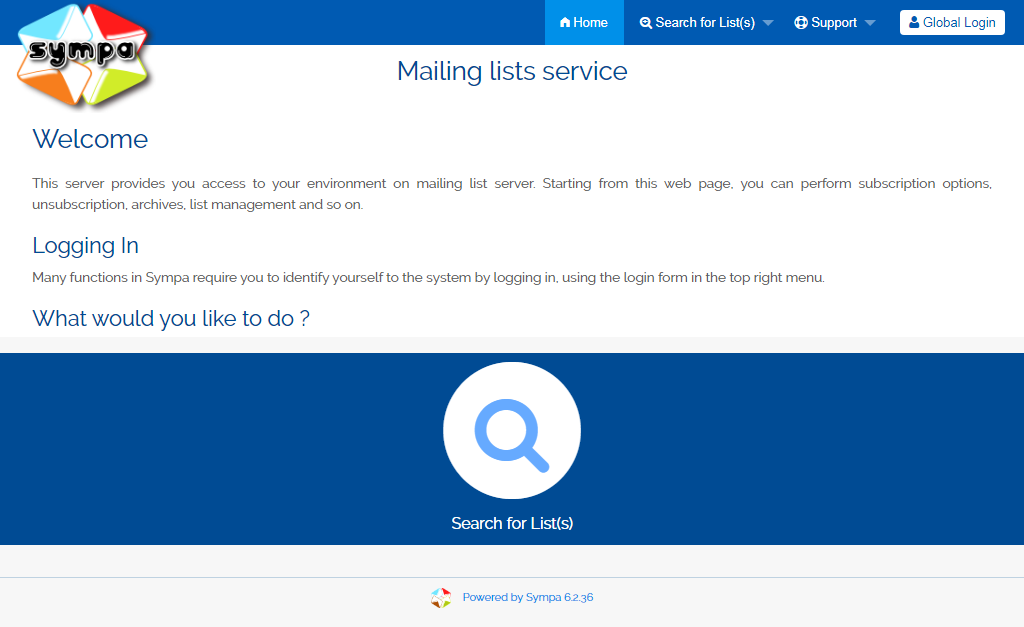

You'll note the new "Global Login" button on your Sympa web interface:

Configuring Apache HTTP Server

Shibboleth authentication needs to be triggered on a dedicated URL. Here is a sample HTTP Server configuration:

<Location /sympa/sso_login/our_service>
    AuthType shibboleth
    ShibRequestSetting requireSession true
    ShibRequestSetting applicationId app-sympa
    require shibboleth
#    require mail ~ @
</Location>

Note that:

Now restart your web server to validate these changes, such as doing:

# service httpd restart

You can have a try accessing http://web.example.org/sympa/sso_login/our_service; it should trigger the Shibboleth user authentication.

Configuring Shibboleth

Shibboleth SP's main configuration file is /etc/shibboleth/shibboleth2.xml. That's the only configuration file you'll have to edit to make Shibboleth authentication work with Sympa.

You'll need to define an application context specific for your Sympa service. If you already have a Shibboleth-enabled service running on the server, you should either using the same application context for Sympa or define a new one using the ApplicationOverride directive.

Here is a sample piece of shibboleth2.xml:

<ApplicationOverride id="app-sympa" entityID="https://web.example.org/sympa">

    <Sessions lifetime="28800" timeout="3600" checkAddress="false" handlerSSL="true">

        <SSO discoveryProtocol="SAMLDS" discoveryURL="https://services-federation.renater.fr/test/wayf">
            SAML2 SAML1
        </SSO>

    </Sessions>
</ApplicationOverride>

Note that:

Restart your Apache server and shibd daemon to use the new configuration file , such as doing:

# service httpd restart
# service shibd restart

Declaring your Sympa service in your favourite federation

It's now time to let identity providers know about your federated mailing list service, otherwise they will not authenticate users that come from your service, or provide no user attributes. You favourite federation probably provides a web form to declare federated resources.

Before you register your mailing list in a production federation you should do some testing. You can either test within a Test federation, for example:

or setup a bilateral trust relationship with a single Identity Provider: See the documentation to setup a bilateral relationship (French, Japanese).

You'll need to make sure all Identity Providers will provide the user email address; therefore they'll need to configure their attribute release policy.

Coping with virtual hosts

If you have Sympa virtual domains for other virtual domains, you'll need to define distinct ApplicationOverride Shibboleth configuration elements for each virtual host. You'll have to declare each of them to your favourite federation, since they appear as separate services.

What if you don't trust provided email addresses?

You might not trust the email address user attribute provided by some Identity Providers, because the provisioning of this attribute is too weak (provided by the user himself, without further checks). This raises security issue because anybody who logs in with somebody else's email address gets this person's privileges on the mailing list server.

This issue can be addressed by Sympa thanks to an extension developped by JP Robinson that allows Sympa to either validate the user's email address or even collect it (later associated to a Shibboleth user identifier).

Please read the documentation for further informations:
